Understanding Map Projections in QGIS: Why Coordinate Systems Matter

One of the most fundamental yet often misunderstood concepts in GIS is map projections and coordinate reference systems (CRS). If you've ever wondered why your data appears in the wrong location, why distance measurements seem incorrect, or why your maps look distorted, the answer likely lies in coordinate systems. Understanding map projections in QGIS isn't just academic knowledge—it's essential for creating accurate maps and performing reliable spatial analysis.

What Are Map Projections and Why Do They Matter?

Imagine trying to wrap a basketball with a flat piece of paper without creating wrinkles or tears. This analogy perfectly illustrates the challenge cartographers face when representing our round Earth on flat maps. Map projections are mathematical formulas that transform the three-dimensional surface of the Earth onto a two-dimensional plane, and this transformation always involves some form of distortion.

In QGIS, every dataset you work with has an associated coordinate reference system that defines how geographic locations are represented numerically. When you see coordinates like latitude 40.7589° and longitude -73.9851° (New York City), you're looking at geographic coordinates. However, when working in QGIS, these might be transformed into projected coordinates like 583960, 4507523 in a UTM system.

The choice of projection affects four key properties of your map: shape, area, distance, and direction. No single projection can preserve all four properties simultaneously, which is why different projections exist for different purposes. Understanding these trade-offs helps you choose the right coordinate system for your specific project needs.

Common Coordinate Reference Systems in QGIS

Geographic Coordinate Systems

The most familiar coordinate system is the geographic coordinate system using latitude and longitude. In QGIS, you'll frequently encounter WGS84 (EPSG:4326), which is the standard used by GPS devices and many web mapping services. WGS84 uses degrees as its unit of measurement and provides global coverage.

While WGS84 is excellent for data storage and exchange, it's not ideal for analysis or measurement. Because it uses angular units (degrees) rather than linear units (meters), calculating distances or areas directly from geographic coordinates can lead to significant errors, especially at higher latitudes.

Projected Coordinate Systems

Projected coordinate systems convert geographic coordinates into a flat, Cartesian coordinate system using linear units like meters or feet. These systems are essential for accurate measurement and analysis. Some of the most commonly used projected coordinate systems include:

Universal Transverse Mercator (UTM) divides the world into 60 zones, each covering 6 degrees of longitude. UTM is excellent for regional and local mapping because it minimizes distortion within each zone. For example, if you're mapping New York City, you'd use UTM Zone 18N (EPSG:32618).

Web Mercator (EPSG:3857) is used by most online mapping services like Google Maps and OpenStreetMap. While it's convenient for web display, Web Mercator significantly distorts areas near the poles and shouldn't be used for area calculations or high-latitude mapping.

Lambert Conformal Conic projections are ideal for mapping countries or regions that extend primarily east-west, such as the United States. These projections preserve angles and shapes well while minimizing distortion across the mapped area.

Albers Equal Area projections preserve area relationships, making them perfect for thematic mapping where accurate area representation is crucial, such as population density or land use maps.

How to Work with Coordinate Systems in QGIS

Setting the Project CRS

When you start a new QGIS project, one of your first decisions should be choosing an appropriate coordinate reference system. QGIS allows you to set the project CRS through the Project Properties dialog. This setting determines how your data is displayed and how on-the-fly transformations are handled.

The project CRS doesn't change your underlying data—it only affects how data is displayed and how measurements are calculated in the map canvas. If you're working on a local project, choose a projected coordinate system appropriate for your region. For global projects, you might stick with a geographic coordinate system or choose a world projection that suits your analysis needs.

Understanding On-the-Fly Transformation

QGIS includes a powerful feature called on-the-fly transformation that automatically reprojects data to match your project's coordinate system. This means you can load datasets in different coordinate systems, and QGIS will display them correctly aligned in your chosen project CRS.

While this feature is incredibly convenient, it's important to understand that transformations can introduce small amounts of error, especially when transforming between very different coordinate systems. For the most accurate results, it's best to reproject your data to a common coordinate system before performing analysis.

Identifying Unknown Coordinate Systems

Sometimes you'll encounter datasets without proper coordinate system information. In QGIS, these appear as having an "unknown" or "undefined" CRS. When this happens, you need to manually assign the correct coordinate system using the "Set CRS for Layer" option.

To identify an unknown coordinate system, look for clues in the data itself. Coordinates in degrees (typically between -180 to 180 for longitude and -90 to 90 for latitude) suggest a geographic coordinate system. Large numbers (like 583960, 4507523) typically indicate a projected coordinate system. The magnitude and range of coordinates can help you narrow down the possibilities.

Choosing the Right Projection for Your Project

Regional and Local Projects

For regional or local mapping projects, choose a coordinate system designed for your specific area. Most countries have national coordinate systems optimized for their territory. For example, the United States uses State Plane Coordinate Systems for high-precision local mapping, while the UK uses the British National Grid.

UTM zones are excellent choices for regional work because they provide good accuracy across a 6-degree wide zone. To find your UTM zone, you can use online calculators or reference UTM zone maps.

Global Projects

When working with global data, your projection choice depends on your analysis goals. If you need to preserve areas for statistical analysis, consider equal-area projections like Mollweide or Goode's Homolosine. For navigation or directional analysis, conformal projections might be more appropriate.

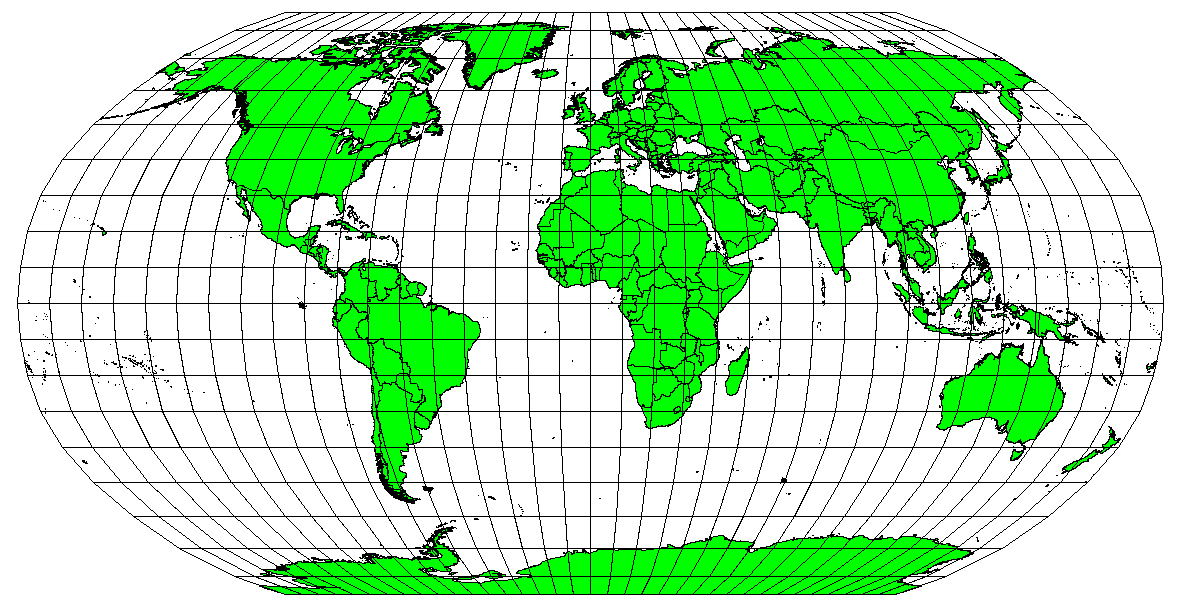

For general-purpose global mapping, Robinson or Natural Earth projections offer a good balance of properties with acceptable distortion across the entire world. These projections are designed to "look right" rather than preserve any specific property perfectly.

Thematic Mapping Considerations

Different types of thematic maps require different projection considerations. Population density maps need equal-area projections to ensure accurate representation of density values. Navigation charts require conformal projections to preserve angles and directions. Distance-based analysis, such as buffer operations, works best in projected coordinate systems with consistent scale.

Common Projection Problems and Solutions

Distorted Shapes and Sizes

If your map features appear stretched or compressed, you're likely using an inappropriate projection for your area of interest. This commonly happens when using Web Mercator for high-latitude regions or when mixing data from different coordinate systems without proper transformation.

Solution: Choose a projection designed for your geographic region and ensure all your data uses the same coordinate system.

Inaccurate Measurements

Distance and area measurements can be wildly inaccurate if performed in the wrong coordinate system. Measuring distances in a geographic coordinate system (degrees) will give meaningless results, while measuring areas in Web Mercator can be off by orders of magnitude.

Solution: Always use an appropriate projected coordinate system for measurement operations. Choose a projection that preserves the property you're measuring (equal-area for area calculations, equidistant for distance measurements).

Misaligned Data Layers

When data layers don't align properly, it often indicates coordinate system mismatches. This can happen when datasets use different datums or when coordinate system information is missing or incorrect.

Solution: Verify that all your data layers have correct coordinate system information assigned. Use QGIS's "Set CRS for Layer" function to assign the correct coordinate system to layers with unknown CRS.

Best Practices for Working with Projections in QGIS

Plan Your Coordinate System Early

Before starting any QGIS project, consider your analysis needs and choose an appropriate coordinate system. This decision should be based on your geographic area of interest, the type of analysis you'll perform, and the accuracy requirements of your project.

Document Your Coordinate System Choices

Keep records of which coordinate systems you use for different projects and why you chose them. This documentation becomes invaluable when you need to reproduce results or explain your methodology to others.

Understand Your Data Sources

Different data sources may use different coordinate systems. Government agencies often use national coordinate systems, while international datasets frequently use WGS84. Understanding the coordinate systems used by your data sources helps you make informed decisions about projection choices.

Test Critical Measurements

For projects where accuracy is crucial, test your measurements against known values. Measure distances between known points or calculate areas of known polygons to verify that your coordinate system choice provides acceptable accuracy for your needs.

Advanced Projection Concepts

Datum Transformations

Understanding datums becomes important when working with high-precision applications or historical data. Different datums use slightly different models of the Earth's shape, which can result in coordinate differences of several meters. QGIS handles most common datum transformations automatically, but you should be aware of potential accuracy implications.

Custom Coordinate Systems

For specialized applications, you might need to create custom coordinate systems. QGIS allows you to define custom CRS using the Coordinate Reference System Selector. This capability is useful for local survey projects or when working with historical maps that use obsolete coordinate systems.

Performance Considerations

On-the-fly transformations can impact performance when working with large datasets. For better performance in complex projects, consider reprojecting your data to a common coordinate system rather than relying entirely on on-the-fly transformation.

Conclusion

Understanding map projections and coordinate systems is fundamental to successful GIS work in QGIS. While the topic can seem complex initially, mastering these concepts will dramatically improve the accuracy and reliability of your spatial analysis and mapping projects.

Remember that there's no "perfect" projection—every choice involves trade-offs. The key is understanding these trade-offs and choosing the coordinate system that best serves your specific project goals. Whether you're measuring distances, calculating areas, or creating beautiful maps, the right coordinate system choice makes all the difference.

By following the principles outlined in this guide and practicing with different coordinate systems, you'll develop the intuition needed to make appropriate projection choices for any QGIS project. The investment in understanding coordinate systems pays dividends in more accurate analysis and more professional-looking maps.
